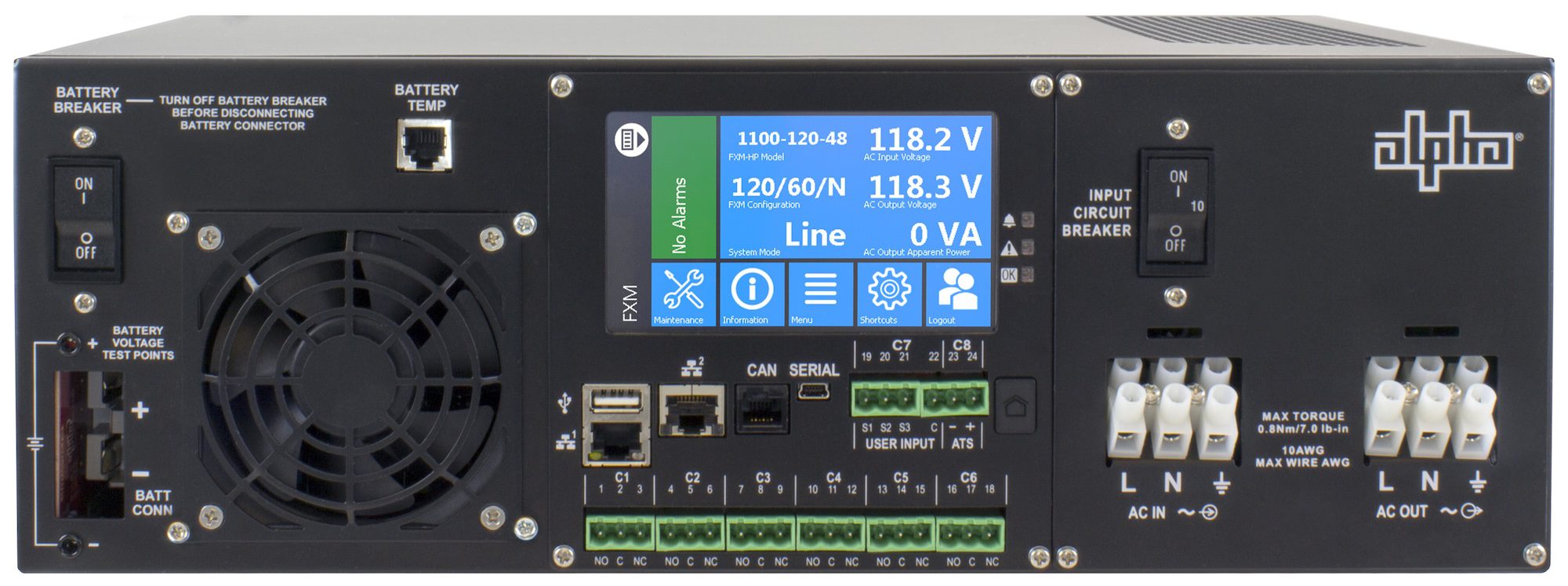

Alpha FXM HP 1100

Description

FXM_HP_1100_F

Designed with a purpose – Alpha FXM HP is the next generation of rugged UPS power modules for the
most demanding environments where clean backup power is needed. It offers a new user-friendly
interface along with proven building blocks for improved operational performance and integrity. While
ensuring equipment in critical applications remains protected from power disturbances and outages it
provides centralized setup, control and monitoring. Typical applications include traffic infrastructure, ITS
equipment, security devices, parking gates, ticket dispenser, VMS signs and AC Small Cell power backup.

Overview

  • 1100W/VA UPS module designed to operate in extreme environments and provide maximum flexibility while ensuring critical loads remain protected and running during power outages and other power disturbances
  • Wide range Automatic Voltage Regulation (AVR) lengthens battery life by providing protection without transferring to backup mode during voltage surge or sag
  • Independently programmable control and report dry contacts allow monitoring and controlling of key functions
  • Temperature compensated battery charging protects batteries from overcharging or undercharging at extreme temperatures, extending the life of the battery
  • Local and remote monitoring and control via RS232 port and Ethernet SNMP interface*
  • UPS panels can be rotated, improving usability and viewing convenience

Interest in this product? Call us at 425.438.1133

Inquire Now

Downloads / Cut Sheets

FXM HP Flyer FXM HP 1100 Datasheet FXM HP UPS Manual
