The Actelis Networks ML2300 aggregation switch delivers high speed Carrier Ethernet 2.0 services using bonded G.SHDSL transmission technology. It is a high density hardened chassis based platform featuring a modular design with advanced redundancy protection schemes, and is suitable for deployment in large to medium COs or remote cabinets.
The ML2300 is a carrier class 4 RU high, 6 slot environmentally hardened platform. It supports 32 to 256 copper pairs (64 pairs/RU) and up to 128 customers (links) per chassis.  ML2300 interface slots can be equipped with up to two SDU (control, switching and aggregation) module cards for redundancy, and up to 4 MLU (modem) access cards.
ML2300 incorporates Actelis’ EFMplus and DRB technologies allowing carriers to offer higher
bandwidth per pair and longer reach per service in real

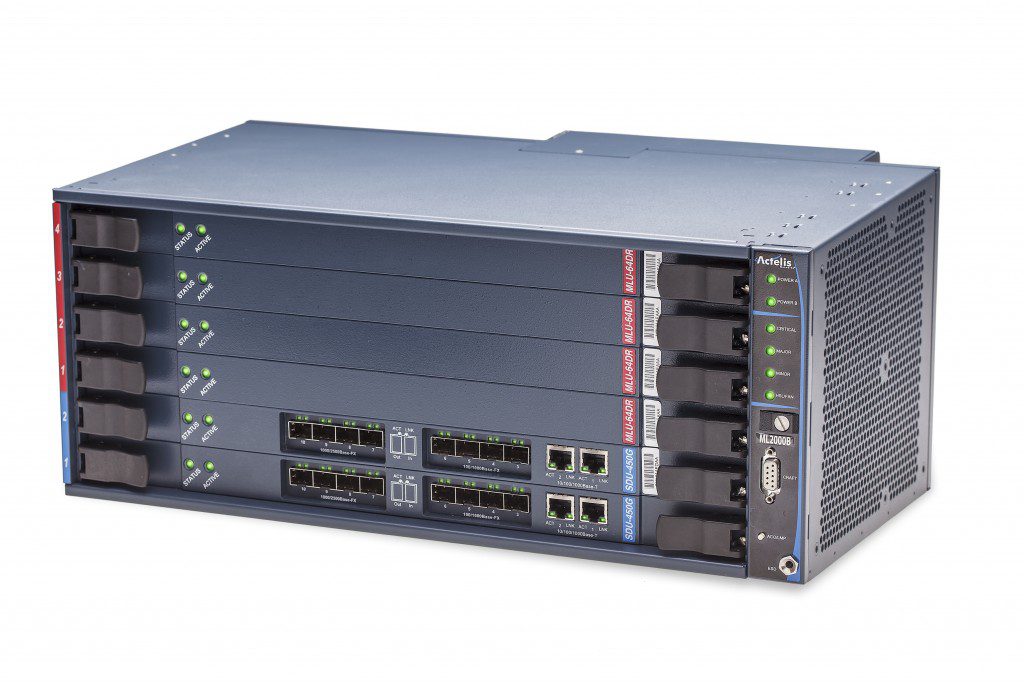

ML2300 Aggregation,
Front Access
world environments along with the most stable and reliable transmission links in the industry. ML2300 aggregation switches offer advanced clock transmission mechanism to ensure best clock accuracy and reliability over copper or fiber networks.
ML2300 offers a very cost effective and rapidly deployable solution for Ethernet services and Ethernet transport applications. MEF CE 2.0certification enables easy integration into existing carrier/enterprise networks, supporting advanced Ethernet features along with comprehensive OA&M capabilities and guaranteed spectral compliance.  ML2300 simplifies deployment, provisioning and troubleshooting to enable high service availability and reliability, as well as efficient pro-active management tools to optimize time to market and minimize service downtime.
ML2300 can be flexibly deployed in PTMP or PTP scenarios with Actelis ML600/ML500 and ML700 (future) EADs. Actelis’ XR239 repeaters can be used to extend reach and rate of services offered off the ML2300.


  • Point-to-Multipoint Ethernet over copper aggregation platform
  • Serves up to 128 sites; Bandwidth from 1-400 Mbps
  • Standards compliant EFM 802.3ah-2BASE-TL platform
  • Actelis' award-winning, patented EFMplus technology for industry-leading Rate, Reach and Reliability over copper pairs
  • Advanced carrier-class protection utilizing redundant SDU-400 series cards
  • Any pair to any link bonding across cards for added resiliency and operational efficiencies
  • Advanced Layer 2 capabilities, including SLA and ingress rate limiting and shaping - Full MEF 10 compliance / MEF 9, 14 certified Dynamic Spectral Shaping (DSS) for minimum spectral impact
  • Carrier-class OAM including 802.3ah, CFM (802.1ag) and Y.1731 (ITU)
  • Ease of installation and deployment, along with advanced copper trouble shooting tools
  • Full Management suite, including MetaASSIST EMS, easy to use GUI, SNMP & IBM Tivoli Software (Netcool Integration)
  • Environmentally hardened
