When managing traffic flow and ensuring public safety, choosing the right traffic signal cabinet is critical. The NEMA TS1 and TS2 standards define two primary frameworks for traffic signal control. Understanding their differences can help you make informed decisions that best suit your project’s requirements. Let’s dive into the key distinctions and explore how these standards apply in real-world scenarios.
What Are NEMA Standards?
The National Electrical Manufacturers Association (NEMA) standards ensure that traffic signal cabinets meet safety, functionality, and interoperability requirements. NEMA TS1 and TS2 are both vital to modern traffic management but cater to different technological needs. TS1 represents a more traditional approach with discrete wiring, while TS2 integrates advanced communications for enhanced functionality.
NEMA TS2 standards include optional features like video surge suppression panels and generator by-pass compartments, as highlighted in the advanced designs from Western Systems’ TS2 cabinets.
Wiring and Communication Differences
The primary difference lies in wiring and communication systems. NEMA TS1 cabinets use discrete wiring, making them simpler and more cost-effective for smaller intersections. On the other hand, TS2 cabinets feature serial communications that allow for more robust and centralized control. This capability is essential for adaptive traffic control systems that require real-time adjustments.

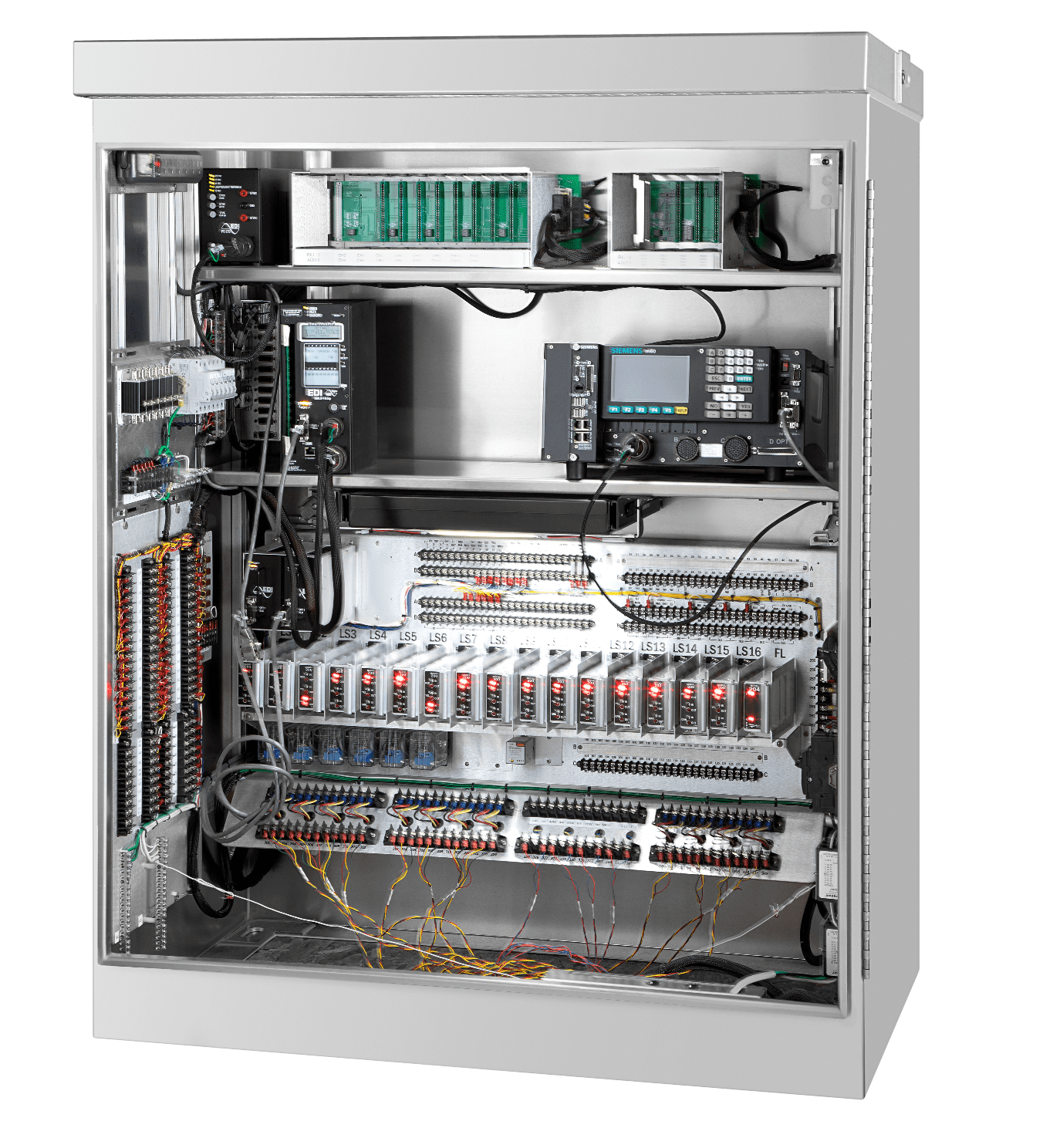

For example, a small suburban intersection might function well with a TS1 cabinet, while a busy urban grid would benefit from the advanced capabilities of TS2. TS2 cabinets also include features like roll-down load bays and up to 64 detection channels for enhanced scalability.
Modularity and Flexibility
TS2 cabinets offer a modular design that enables customization based on specific project needs. Whether you require additional detector inputs, power supply modules, or advanced communications interfaces, TS2 provides unmatched flexibility. TS1 cabinets, while reliable, are more rigid in design and lack the scalability offered by TS2.
Western Systems’ innovative designs, such as the P cabinet, provide extra shelf space for ITS equipment without losing functionality, further enhancing customization capabilities.
Environmental Adaptability
Both TS1 and TS2 standards ensure durability, but TS2 cabinets’ enhanced technology makes them better suited for harsh environments and complex setups. TS2 cabinets are designed to handle advanced power systems and backup solutions, ensuring uninterrupted operation in adverse conditions like extreme weather.
Western Systems’ P-Plus Cabinets integrate battery backup systems directly into their enclosures, eliminating the need for additional space and ensuring seamless operation during power outages.
Ease of Maintenance
While TS1 cabinets are easier to maintain due to their straightforward wiring, TS2 cabinets often include diagnostic tools and advanced monitoring capabilities. These features reduce downtime and improve maintenance efficiency by quickly identifying and addressing issues.
A TS2 cabinet’s ability to send real-time alerts to maintenance teams can prevent traffic disruptions in high-demand intersections. Additionally, features like rear door access and silk-screened labeled wiring make maintenance more user-friendly.
Project Suitability and Costs
The choice between TS1 and TS2 depends largely on the project’s complexity and budget. TS1 cabinets are cost-effective for smaller projects with straightforward requirements, while TS2 cabinets justify their higher costs by offering advanced functionalities for more demanding scenarios.
Western Systems provides both standard and custom cabinets to match these varying needs. Their pre-built options reduce lead time, while semi-custom cabinets offer tailored solutions that fit your specific design preferences and space requirements.
Customization with Western Systems
At Western Systems, we understand that one size doesn’t fit all. That’s why our traffic cabinets—whether stock, semi-custom, or fully custom—are designed to meet diverse requirements. From standard sizes to unique design preferences, our cabinets are built with quality materials to ensure they exceed industry standards.
For example, a municipality needing a quick solution can opt for pre-built cabinets, while a smart city project requiring advanced features can benefit from unlimited customization options. Features like touch-safe components and enhanced ventilation systems are additional highlights of our cabinet designs.
Make the Right Choice with Western Systems
Understanding the differences between NEMA TS1 and TS2 standards is crucial for selecting the right traffic control solutions. Whether you need the simplicity of TS1 or the advanced features of TS2, Western Systems has the expertise and products to support your project.
Explore our wide range of traffic signal cabinets and discover how our innovative solutions can help you build reliable, future-ready infrastructure. Contact our team at Western Systems today to discuss your needs.
